What Is Branch Circuit in Simple Terms?

A branch circuit runs from a final breaker or fuse to the outlets, lights, appliances, or equipment it supplies. It includes conductors, circuit protection, wiring devices, and grounding parts. Its rating depends on voltage, conductor ampacity, connected load, and electrical code requirements.

How Do I Know if a Branch Circuit Is Overloaded?

Repeated breaker trips, dim lights, warm receptacles, buzzing, and burning odors may show overloads or wiring faults. Find the equipment on the circuit, limit shared use, and have the current and connections tested. Do not install a larger breaker unless the complete circuit supports it.

Does a New Appliance Need Its Own Branch Circuit?

Some appliances need a dedicated branch circuit because they draw much current or have code requirements. Examples may include electric dryers, ranges, water heaters, air conditioners, and certain microwave ovens. Check the appliance nameplate, instructions, panel capacity, conductor size, and local electrical requirements before connecting it.

Glossary

What is Branch Circuit?

Branch Circuit is the portion of an electrical system that carries power from a final overcurrent device to outlets, lights, appliances, or other connected loads. A branch circuit includes conductors, circuit protection, and wiring devices. Residential circuits commonly supply 120 or 240 volts, while circuit ratings depend on conductor ampacity and connected load.

Sources reviewed: National Fire Protection Association, NFPA 70 National Electrical Code, Occupational Safety and Health Administration, Electrical Safety

Quick Facts About Branch Circuit

Key Takeaways About Branch Circuit

A branch circuit starts at a panelboard breaker and ends at outlets, lights, or equipment.
The breaker size must match conductor ampacity and the planned electrical load.
Multiwire branch circuits share a neutral conductor and need correct installation and disconnecting means.
Dedicated branch circuits serve equipment that needs a separate supply to prevent overloads.
Grounding and bonding help lower shock risk during faults on a branch circuit.

Understanding Branch Circuit

Branch Circuit is part of an electrical installation. It runs between the final overcurrent protectiondevice and its outlets or equipment. The circuit normally begins at a breaker or fuse.load center. It then travels through conductors, boxes, switches, receptacles, and other wiring devices. It reaches the connected load.

Related glossary terms: American Wire Gauge, Ampacity, Arc-Fault Circuit Interrupter.

A branch circuit may supply one outlet, several receptacles, lighting fixtures, or a fixed appliance. A general-purpose circuit often serves multiple small loads. A dedicated circuitsupplies equipment such as an electric range, water heater, or air conditioner.National Electrical Code classifies branch circuits by voltage, purpose, and protection needs.

How Branch Circuit Works, Is Measured, or Is Used?

Electrical current leaves the panel on a hot conductor. It returns through a neutral conductor when the load operates. The equipment grounding conductor provides a low-resistance path during a fault. This path lets the breaker open quickly. A circuit may use one hot conductor for 120 volts. It may use two hot conductors for 240 volts. The equipment and system design determine the voltage.

The breaker rating, conductor size, and connected load must work together. Electricians check ampacity, voltage, conductor material, insulation rating, and installation conditions. They check these items before selecting protection. A 20-ampere circuit must have conductors allowed for that rating. The applicable code sets this rating. The circuit must not be overloaded by connected equipment.

Common branch circuit types include a two-wire circuit with a hot and neutral. They also include a three-wire circuit with two hots and a neutral. Another type has an equipment grounding conductor.multiwire branch circuit shares a neutral between two ungrounded conductors. Correct phasing, neutral connections, and common disconnecting rules matter. A loose or broken neutral can create unsafe voltage conditions.

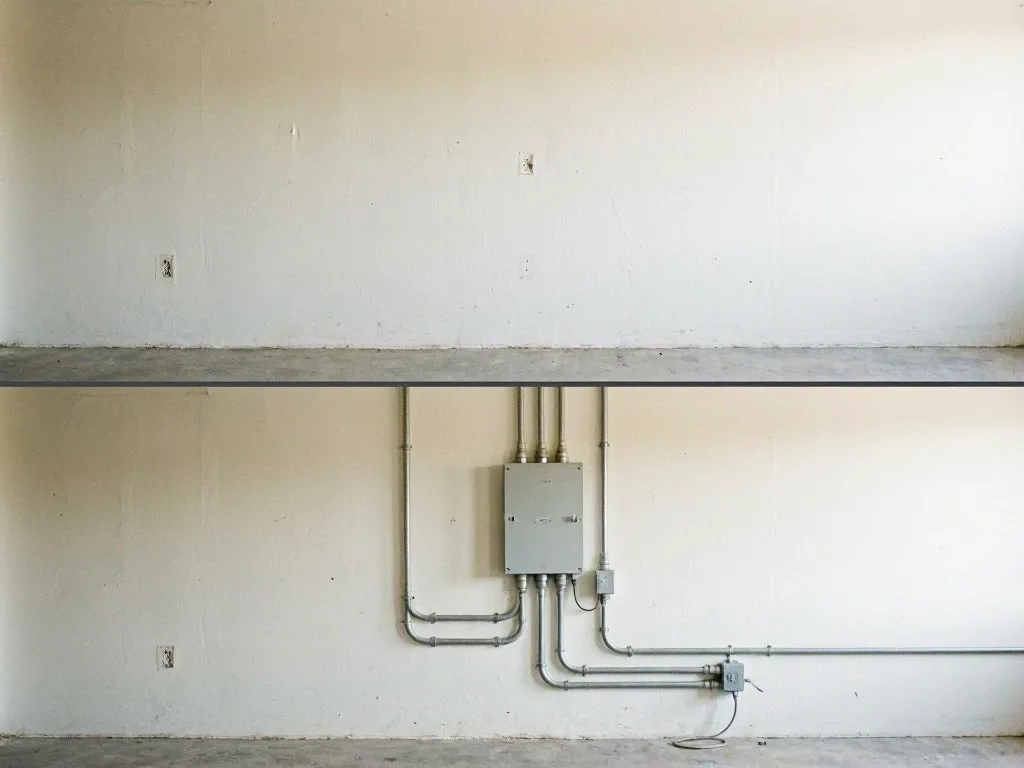

Why Branch Circuit Matters?

Branch circuit design affects safety, reliability, and voltage performance throughout a building. An overloaded circuit can trip again and again. It can also heat wiring or damage connected equipment. An incorrectly sized breaker may let conductors carry too much current. Their insulation and installation conditions may not allow this current.

Clear circuit identification also improves maintenance and emergency work. A panel schedule should show which rooms, receptacles, lights, or appliances each breaker controls. Ground-fault circuit interrupters protect people in areas with shock hazards. Arc-fault circuit interrupters help detect dangerous arcing in many dwelling areas.

When Branch Circuit Matters Most?

Branch circuits matter during remodeling, appliance replacement, panel changes, and electrical troubleshooting. A new high-demand appliance may need a dedicated circuit. It may not work safely on an existing general-purpose circuit. Older wiring may also lack grounding or have damaged insulation. It may contain connections that need correction before adding loads.

Warning signs include warm receptacles, buzzing from a panel or outlet, repeated breaker trips, flickering lights, burning odors, and scorch marks. These conditions can show loose connections, excessive load, damaged wiring, or failing devices. Turn off affected equipment when safe. Avoid resetting a breaker repeatedly. Treat visible damage as a reason for prompt electrical evaluation.

How to Evaluate Branch Circuit?

Check whether the breaker rating matches the conductor size and the circuit design.
Identify every outlet, light, and appliance supplied by the circuit.
Measure operating voltage and current under normal and expected maximum load.
Look for warm devices, discoloration, buzzing, damaged insulation, or repeated breaker trips.
Verify grounding, neutral connections, labeling, and required GFCI or AFCI protection.

Related Concepts Compared

Branch Circuit vs. Feeder

A feeder carries power from a service or source panel to another panel or distribution point. A branch circuit carries power from the final overcurrent device to outlets or equipment.

Branch Circuit vs. Dedicated Circuit

A dedicated circuit is a branch circuit assigned to one appliance or load. Every dedicated circuit is a branch circuit, but many branch circuits serve multiple outlets or devices.

Branch Circuit vs. Multiwire Branch Circuit

A multiwire branch circuit is a specific branch circuit arrangement with two or more ungrounded conductors sharing a neutral. It requires correct phase relationships and disconnecting provisions.

Branch Circuit vs. Electrical Load

Electrical load is the power consumed by equipment or devices. A branch circuit is the wiring path and protection that delivers power to that load.

Expert Note

A circuit that operates below its breaker rating can still have a problem. Loose terminations, damaged insulation, shared neutrals, and voltage drop may create heat or poor performance without immediately tripping the breaker.

Common Mistakes or Myths About Branch Circuit

Installing a larger breaker without confirming that the conductors and equipment support the higher rating.
Assuming one breaker always supplies only one receptacle or appliance.
Ignoring repeated trips, warm receptacles, buzzing, or burning odors.
Leaving a shared neutral loose or incorrectly connected in a multiwire branch circuit.
Adding high-demand equipment to an existing circuit without checking load capacity.

Branch Circuit in Practice: A Real-World Example

A kitchen receptacle circuit supplies a toaster, coffee maker, and outlets from a 20-ampere breaker. If both appliances trip the breaker, the load may exceed capacity or need wiring tests.
